HDBaseT Set, HDMI + USB-C, 4K, Tx-WP+ Rx-Box

Product ID : EHB-230-W

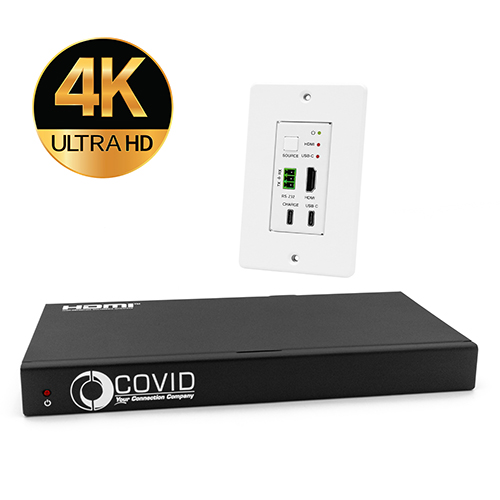

HDBaseT Wall Plate Transmitter/Receiver Set with HDMI and USB-C


  • Compliant with HDMI 2.0b, HDCP 2.2
  • HDMI input supports 18Gbps video bandwidth
  • USB-C input supports 5.4Gbps video bandwidth
  • 2x1 Switcher with video resolution up to 4K@60Hz 4:4:4
  • HDBaseT output can extend video transmission distance up to 230ft for 1080P@60 or 132ft for 4K@60 via CAT6
  • Support 3D, HDR10 and Dolby Vision
  • HDMI audio formats support LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTSHD Master Audio, DSD
  • Support HDMI and USB-C input
  • With USB-C charging port
  • US one-gang enclosure for Decora-style wall plates
  • Input selection supports automatic and manual mode
  • Support POE function (only from Receiver to Transmitter)

Why Use This Product?

Resolution: This switcher supports 4K 18Gbps.

Distance: HDBaseT can extend video transmission to 230ft for 1080p and 132ft for 4K via a single CAT6 cable.


Easily switch between 2 devices using hdmi and usb-c inputs.
